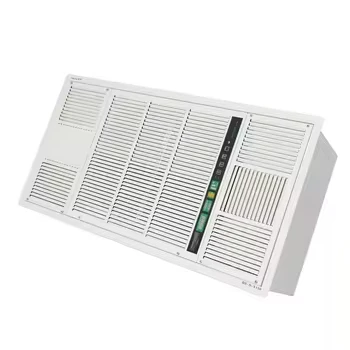

HB-D-X150 Ceiling Air Purifier
Our ceiling mounted air purification unit uses multi-stage filtration to capture pathogens in the air and obtain the best performance. Each air purifier is equipped with Merv 8 pre filter and certified industry standard HEPA filter, which can capture at least 99.97% particles of 0.3 microns or less. In addition, the purifier can be configured with four exhaust ports to allow HEPA filter recirculation, multipoint recirculation, HEPA exhaust gas or simultaneous recirculation and exhaust. Ceiling mounted air purifier creates a negative pressure environment and is an ideal IPC solution for many locations in installation.
Description
Our ceiling mounted air purification unit uses multi-stage filtration to capture pathogens in the air and obtain the best performance. Each air purifier is equipped with Merv 8 pre filter and certified industry standard HEPA filter, which can capture at least 99.97% particles of 0.3 microns or less. In addition, the purifier can be configured with four exhaust ports to allow HEPA filter recirculation, multipoint recirculation, HEPA exhaust gas or simultaneous recirculation and exhaust. Ceiling mounted air purifier creates a negative pressure environment and is an ideal IPC solution for many locations in installation.
Application Range
Hospital: Most class II and III rooms such as OT, clinics, in-patient rooms, maternity ward, infant rooms, burn department, ICU, etc.
Manufacturing Facility: Sterile rooms, laboratories, etc.
Food & Beverage Factories: Production workshop, packing workshop, sterile rooms, etc.
Public Places: Meeting rooms, hotels, entertainment places, offices, etc.
|
Model |
HB-D-X100 |
HB-D-X150 |
|
Power(W) |
150 |
250 |
|
Disinfection Space(m3) |
100 m3 |
150 m3 |
|
Machine size (mm) |
620*620*330 mm |
1210*345*620 mm |
|
Material |
Galvanized plate |
|
|
Voltage |
110~120 V / 60 Hz ; 220~240 V / 50 Hz |
|
Principle of work
1. Chemical effect: Large quantities of negative oxides and free radicals with high energy in plasma can easily have a chemical reaction with hazardous material and kill the micro-organism.
2. Biological effect: Plasma has a sterilisation effect via high-energy electrons that destroy cell walls of bacteria, viruses and others micro-organisms.
